Aka--Products
|
| Pneumatic flanged ball valves |
 |
|
· Property specifications |
 |
· Flange connecting dimensions in accordance with ANSI B16.5 or JIS2212.2214

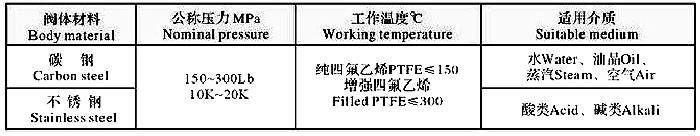

· Body material：WCB、CF8、CF8M、CF3、CF3M
· Ball material:SS304.SS316.SS304L.SS316L.Monel
· Purpose:ON/OFF or Adjusting Type
· Actuator :Double or Single Action
· Air（supply）pressure：0.4-0.7MPa
· Our valves possess the characterristics of Anti-static design and Fire type design
· Electric actuator is available uponrequest
· Our valves possess the characterristics of Anti-static design and Fire type design

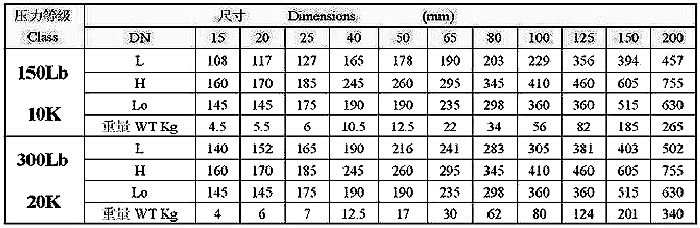

· Size of products and dimensions
|
 |
| |
|
|
|
